Buy Micro-Epsilon optoNCDT ILR3800-100 Online

The Micro-Epsilon optoNCDT ILR3800-100 is a high-performance, time-of-flight (ToF) laser distance sensor launched in March 2025, designed for precise, long-range measurements in industrial and outdoor applications.

•  Manufacturer: Micro-Epsilon, a German company known for precision measurement solutions.

•  Type: Time-of-flight laser distance sensor.

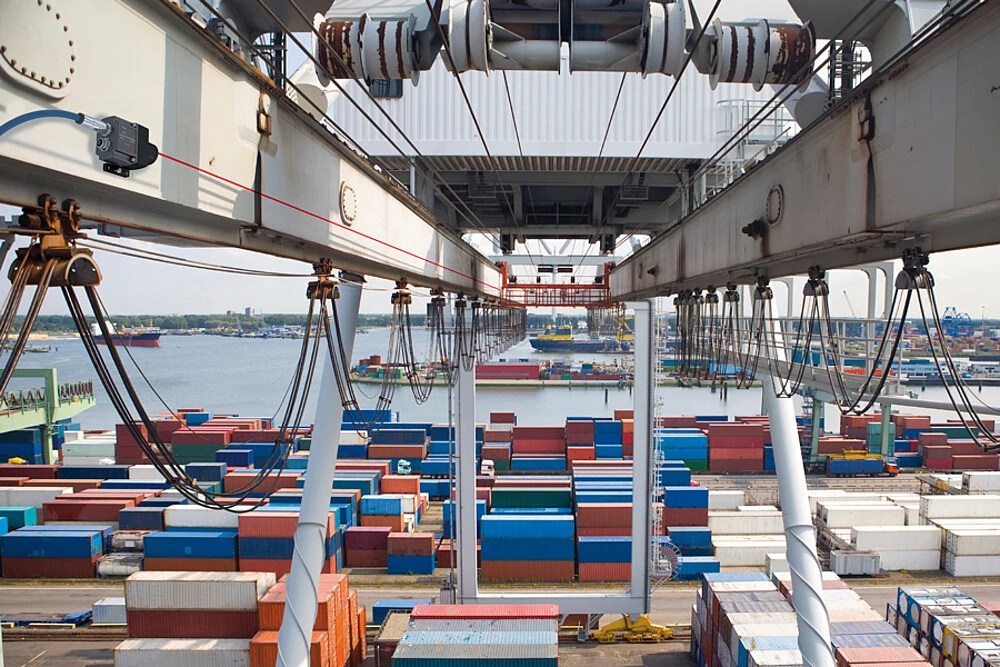

•  Applications: Industrial automation, logistics, structural monitoring, robotics, and outdoor tasks like drone navigation or crane positioning.

•  Key Features: Extended range, high accuracy, IP67 rating, and modern connectivity for Industry 4.0 integration.

Key Specifications

Based on available data (e.g., Micro-Epsilon’s website and press releases):

•  Measuring Range:

•  0.2 m to 150 m (with reflector).

•  0.2 m to 80 m (on natural surfaces, e.g., without reflectors).

•  Accuracy: ±2 mm.

•  Repeatability: ±0.5 mm.

•  Resolution: 0.1 mm.

•  Response Rate: Up to 100 Hz (10 ms per cycle, depending on mode).

•  Light Source: Red laser, Class 1 or 2 (configurable for safety).

•  Protection Rating: IP67 (dust-tight, protected against water immersion).

•  Operating Temperature: -20°C to +60°C; optional heating model (ILR3800-100-H) extends to -40°C to +55°C.

•  Communication Interfaces: PROFINET, EtherNet/IP, RS422, analog outputs.

•  Weight: Approx. 600 g.

•  Housing: Aluminum, compact, and robust for outdoor use.

•  Power Consumption: Typically < 300 mA (based on similar Micro-Epsilon models).

Models
